General Duty

Ifor William General Duty
Ifor William General Duty

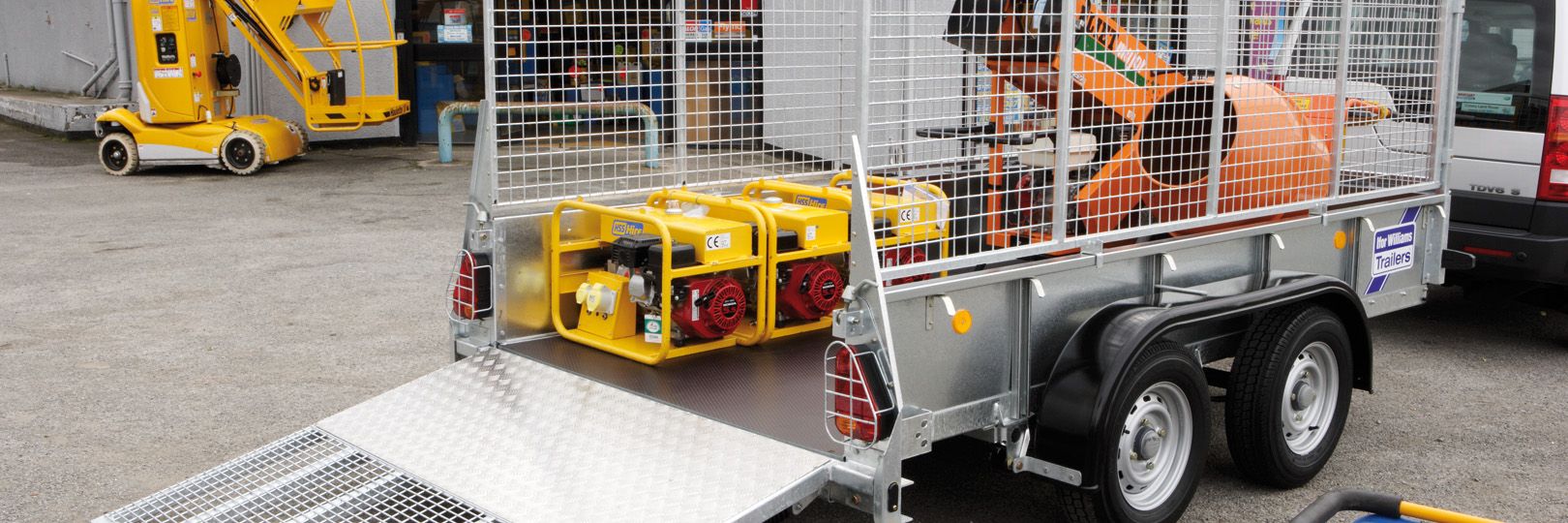

Our General Duty trailers are at home in almost any environment, with virtually any type of load, from building materials to expedition equipment.

Tough, adaptable and easy to maintain, the General Duty range is designed to withstand the daily rigour of the construction industry and other arduous conditions.

The trailers are built around a welded steel, galvanized chassis with fixed front and side panels. These panels are constructed from formed galvanized steel and are supported by galvanized steel channel sections.

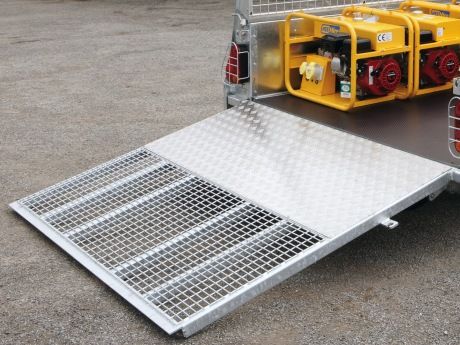

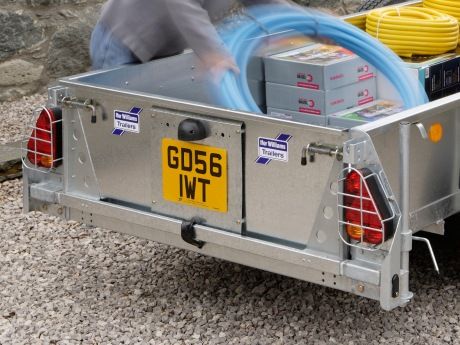

The General Duty range is offered in width options from 1.23m/4’ to 1.71m/5’6” (internal width), and length options from 1.84m/6’ to 3.71m/12’2”. All models are fitted with the Ifor Williams beam axle and leaf sprung suspension and either a tailboard or rear ramp with assistor.

Our General Duty trailers are available with a number of axle options and a maximum gross weight ranging from 1400kg to 2700kg.

Specifications

Model Tyres Gross Weight Unladen Weight Internal Length Internal Width Overall Length Overall Width
GD64 Single Axle 165R13C 1400kg 325kg 1.89m/6'2" 1.25m/4'1" 2.95m 1.75m
GD84 Single Axle 165R13C 1400kg 355kg 2.5m/8'2" 1.25m/4'1" 3.60m 1.75m
GD84 Single Axle 175/75R16C 1500kg 395kg 2.5m/8'2" 1.25m/4'1" 3.60m 1.80m
GD84 Single Axle 6.50R16C 1500kg 400kg 2.5m/8'2" 1.25m/4'1" 3.60m 1.80m
GD84 165R13C 2700kg 450kg 2.55m/8'2" 1.25m/4'1" 3.60m 1.80m
GD85 Single Axle 165R13C 1400kg 395kg 2.5m/8'2" 1.58m/5'2" 4.0m 2.20m
GD85 165R13C 2700kg 485kg 2.5m/8'2" 1.58m/5'2" 4.0m 2.20m
GD105 165R13C 2700kg 585kg 3.11m/10'2" 1.58m/5'2" 4.55m 2.20m
GD125 165R13C 2700kg 585kg 3.73m/12'2" 1.58m/5'2" 4.95m 2.20m
GD106 165R13C 2700kg 600kg 3.11m/10'2" 1.77m/5'9" 4.55m 2.30m
GD126 165R13C 2700kg 625kg 3.73m/12'2" 1.77m/5'9" 4.95m 2.30m
LED Lights
LED lights draw very little current and this means some vehicles present problems when coupled with LED equipped trailers, including (but not limited to) hazard warning lights flashing continuously and erroneous dashboard tell-tale lights. Where such problems occur, these are vehicle problems and Ifor Williams Trailers will not be responsible for their resolution. Owners are strongly advised to make thorough checks with the vehicle manufacturer before buying and LED equipped trailer.

Features

Chassis
The underside of the trailer features a galvanized steel chassis and drawbar, for longlasting corrosion protection.
Floor
Phenol-coated on both sides, our ply platform floors feature an embossed grip pattern on the upper surface.
Beam Axle & Leaf Spring Suspension
The Ifor Williams beam axle system increases stability and reliability whilst ensuring minimum maintenance.
Spare Wheel
A mounting bracket and spare wheel are fitted as standard to all Ifor Williams trailers for complete peace of mind.
Coupling Head
The lockable low-profile coupling head ensures optimum clearance of 4×4 rear doors.
Loading Skids
Fitted to the GP and GX models, these are adjustable for width when deployed.
